Get the FOETH HV Mixer!

Foeth supplies brand new European manufactured vertical HV type conical mixers. The conical mixers (also referred to as Nauta® type mixers) are popular in many process industries including chemical, pharmaceutical and food production.

Outstanding design

The standard design of our mixer fulfill the regular needs of our customers but can be enriched with our additional options. All our conical mixers are supplied in the following configuration:
Smooth movement
Arm for orbital movement and agitator screw for vertical movement
Well thought out
Sturdy gearbox with hollow shaft for optional liquid injection. Manually operated bottom outlet valve.
Stainless steal parts
Cone, dished head, covers, clamps, screw agitator, orbital arm and outlet are made of stainless steel AISI 304 (1.4301)
Home
Coated where needed
Parts of the vessel that are in contact with the product, including welds, are ground smooth.
Easy to use
Quick disconnect agitator design for easy removal and assembly.
Qualitative material
Standard vessel wall thickness is 2.5 mm and a hardened, nearly maintenance-free bottom pintle bearing.

Perfect for mixing free-flowing powders and pastes.

The Foeth vertical conical mixers are available from 50 to 5000 liters. The design is based on the Nauta® mixer and is recognized for its outstanding mixing performance, consisting mixing results and short mixing time.
Home
The HV 50 is our entry-level model and has the following specifications:
  • Working capacity: 50 (ltr)
  • Total height: 1222 (in mm) (A)
  • Cone height: 860 (in mm) (B)
  • Diameter: 730 (in mm) (C)
  • Motor: 0,75 (kw)
  • Weight: 250 (kgs)
    • HV 50
    Home
  • Working capacity: 100 (ltr)
  • Total height: 1372 (in mm) (A)
  • Cone height: 1010 (in mm) (B)
  • Diameter: 822 (in mm) (C)
  • Motor: 1,1 (kw)
  • Weight: 500(kgs)
    • HV 100
    Home
  • Working capacity: 200 (ltr)
  • Total height: 2200 (in mm) (A)
  • Cone height: 1315 (in mm) (B)
  • Diameter: 1178 (in mm) (C)
  • Motor:2,2 (kw)
  • Weight: 550 (kgs)
    • HV 200
    Home
  • Working capacity: 300 (ltr)
  • Total height: 2415 (in mm) (A)
  • Cone height: 1530 (in mm) (B)
  • Diameter: 1300 (in mm) (C)
  • Motor: 3,0 (kw)
  • Weight: 600 (kgs)
    • HV 300
    Home
  • Working capacity: 600 (ltr)
  • Total height: 2729 (in mm) (A)
  • Cone height: 1844 (in mm) (B)
  • Diameter: 1492 (in mm) (C)
  • Motor: 3,0 (kw)
  • Weight: 650 (kgs)
    • HV 600
    Home
  • Working capacity: 1000 (ltr)
  • Total height: 3060 (in mm) (A)
  • Cone height: 2184 (in mm) (B)
  • Diameter: 1560 (in mm) (C)
  • Motor: 3,0 (kw)
  • Weight: 700 (kgs)
    • HV 1000
    Home
  • Working capacity: 1500 (ltr)
  • Total height: 3425 (in mm) (A)
  • Cone height: 2500 (in mm) (B)
  • Diameter: 1753 (in mm) (C)
  • Motor: 4,0 (kw)
  • Weight: 800 (kgs)
    • HV 1500
    Home
  • Working capacity: 2000 (ltr)
  • Total height: 3725 (in mm) (A)
  • Cone height: 2800 (in mm) (B)
  • Diameter: 1936 (in mm) (C)
  • Motor: 4,0 (kw)
  • Weight: 900 (kgs)
    • HV 2000
    Home
  • Working capacity: 3000 (ltr)
  • Total height: 4125 (in mm) (A)
  • Cone height: 3200 (in mm) (B)
  • Diameter: 2180 (in mm) (C)
  • Motor: 5,5(kw)
  • Weight: 1000 (kgs)
    • HV 3000
    Home
  • Working capacity: 5000 (ltr)
  • Total height: 5300 (in mm) (A)
  • Cone height: 4130 (in mm) (B)
  • Diameter: 2950 (in mm) (C)
  • Motor: 11 / 1,1 (kw)
  • Weight: 3000 (kgs)
    • HV 5000

    Highlighted features

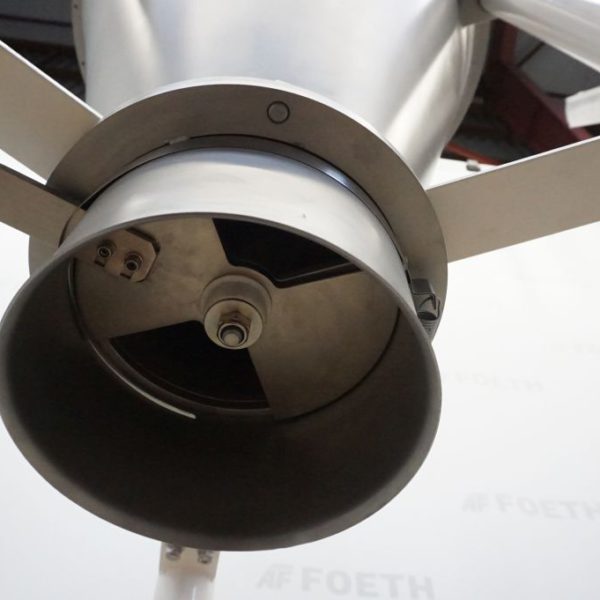

    Outlet valve

    Outlet valve

    A manually operated bottom outlet valve is standard on all HV mixers

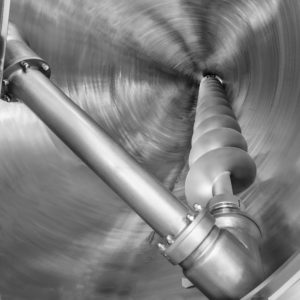

    screw

    screw

    Arm for orbital movement and agitator screw for vertical movement

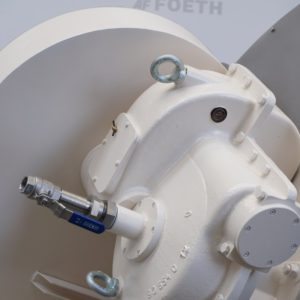

    Gearbox

    Gearbox

    Sturdy gearbox with hollow shaft for optional liquid injection.
    Pintle bearing

    Pintle bearing

    All HV mixers provided with a hardened, nearly maintenance-free bottom pintle bearing.

    Modular, reliable & fast

    Due to the strong market demand the HV50, HV1500 and HV3000 models are in stock and ready to ship. We ship worldwide and depending on your location they arrive within in a few working days. On request we can equip our mixers with several options:
  • Liquid spraying device
  • Lump breaker
  • Inspection hatch
  • Knife outlet valve
  • Legs
  • Stainless steel 316
  • Beltless drive
  • Polishing
  • and several other options on request

    • Download the mixer PDF
